Drive |
Infıtely Variable |
Rope Diameter/Lenth |
Max. Single Line Pull |
 |
0-110 m/min
(4th layer) Single Line |
14 mm / 183 m |
26.2 kN / 2671 kg
(4th layer) |
 |
approx. 60 seconds to reach 82° boom angle |
 |
approx. 45 seconds for boom extension from 9.2 m to 22 m |
 |
1.5 min-1 |
Chassis
Frame
HIDROKON designed and manufactured, box type torsion resistant, made of high tensile structural steel.

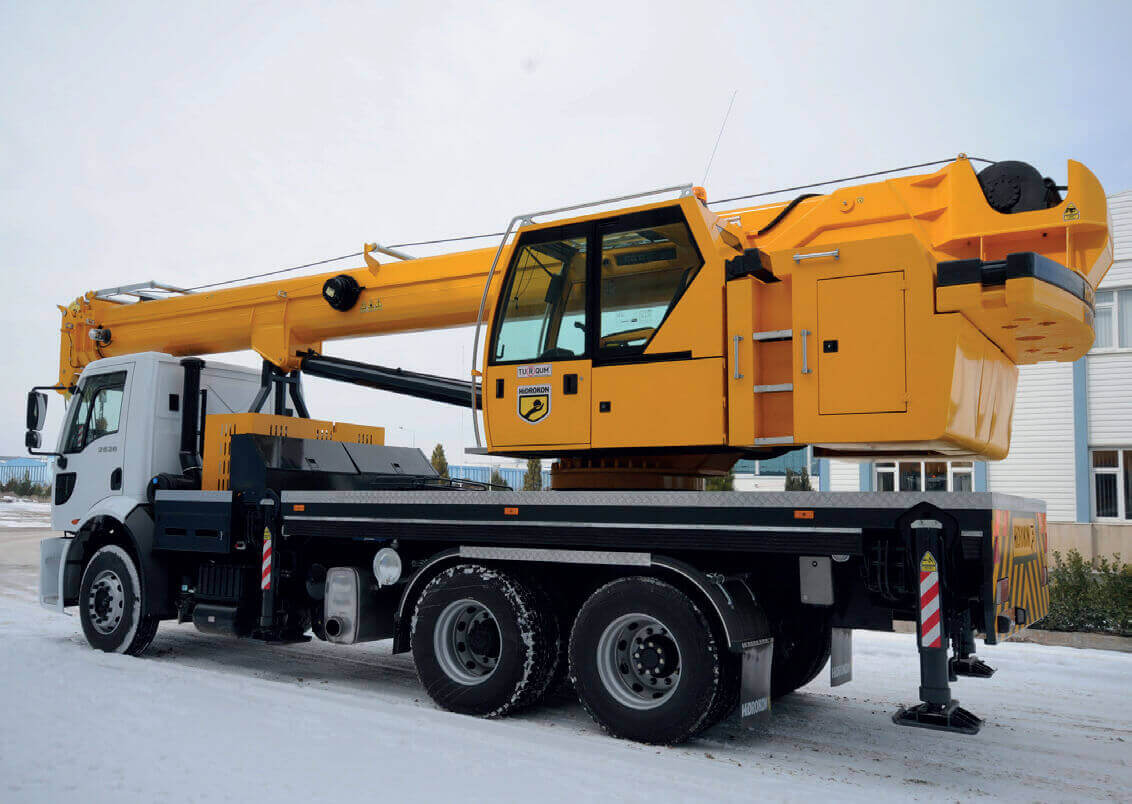

Outriggers
H type four outriggers which are hydraulically operated by control levers. Control levers are located at the each side of the truck chassis.
Superstructure
Slewing System
Continuous slewing on ball bearing slewing ring. Process is operated by hydraulic motor driven planetary gear reducer. Slewing is possible continuously 360°.
Slewing speed 1.5 min-1

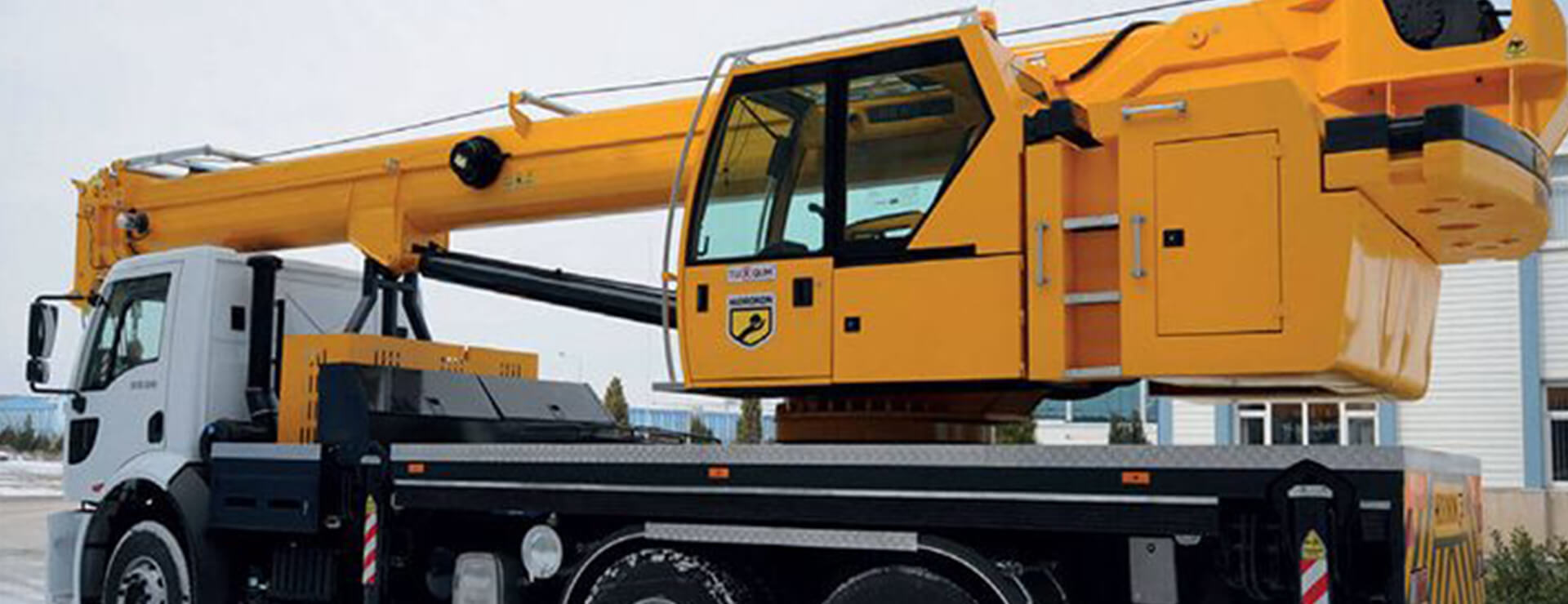

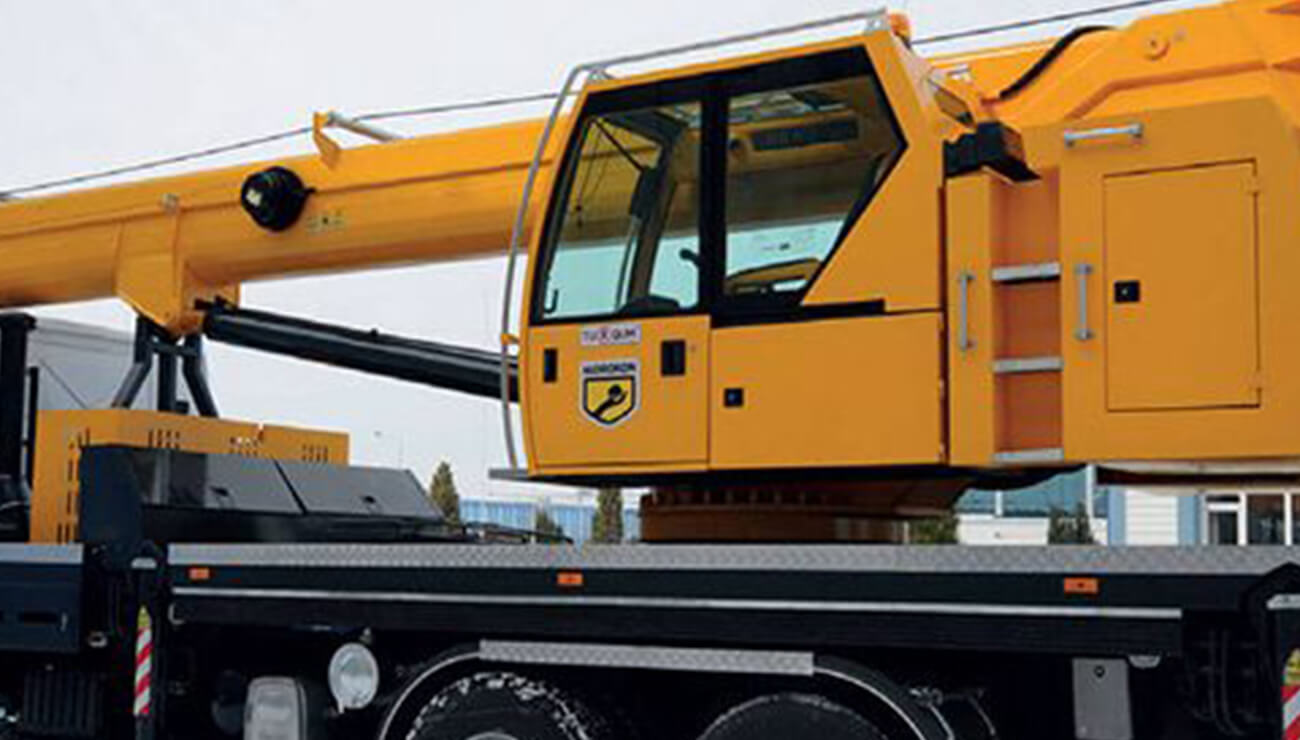

Operator Cabin
Ergonomic and comfortable design for optimum visibility. Cabin with heater and tilt function up to 25°.
Counterweight
Fixed counterweight of 2.5t.

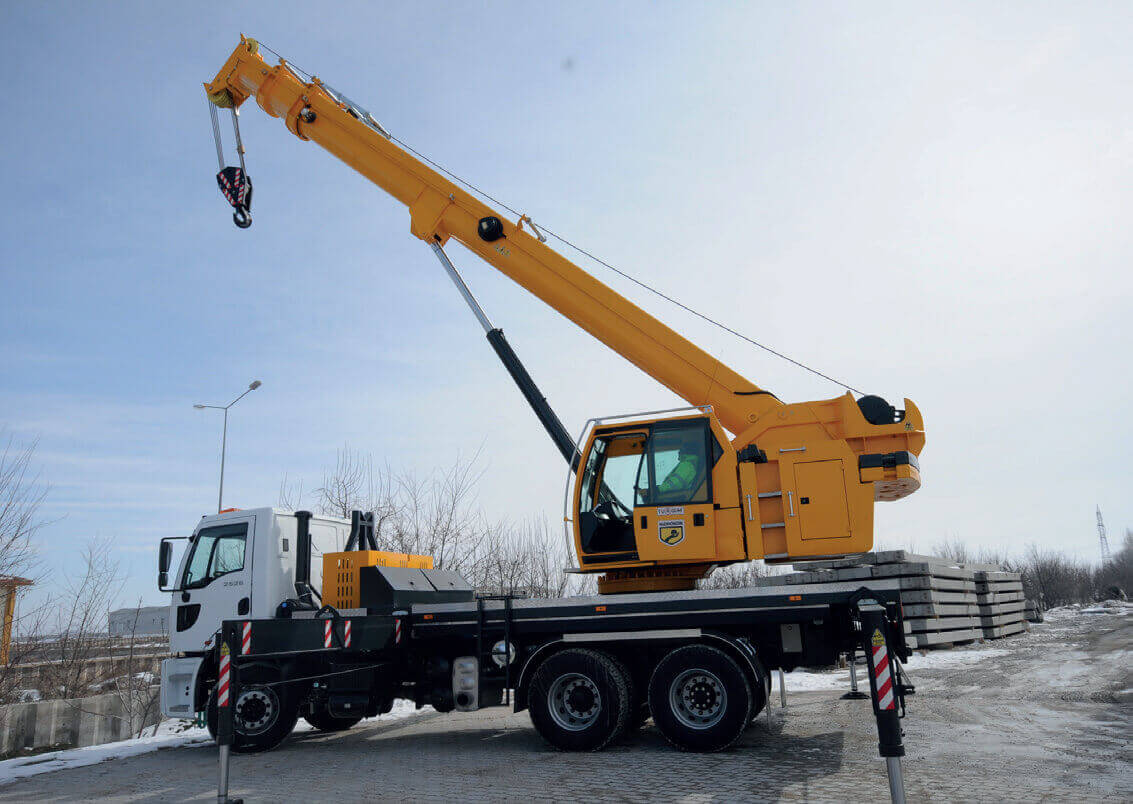

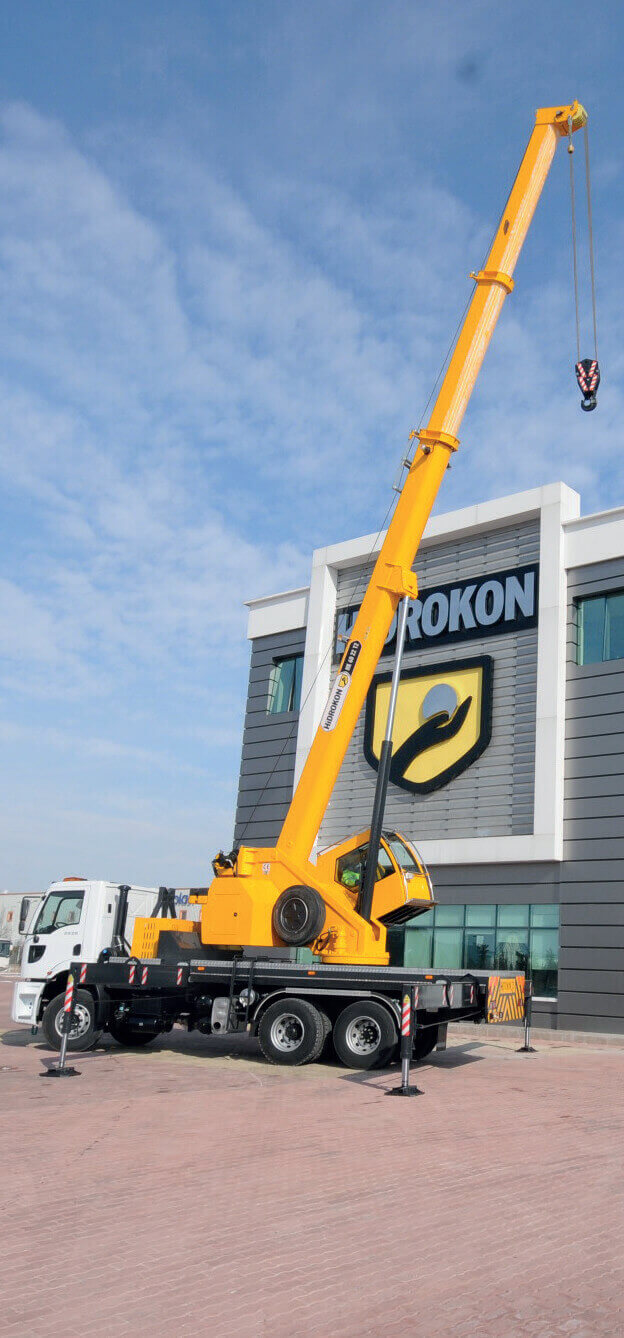

Booms
Telescopic Booms
System consist of 1 basic boom and 2 telescopic boom sections. Hydraulically extendable and sy-nchronized extension is on telescopic booms. Sections are made of high strength structural steel.
• Main boom length is 9.2 m – 22 m.
• Boom angle range is 0° - 82°.
• Main boom reaches 0° to 82° in 60 s.
Safety Devices
Telescopic Booms
Load Weighing System, Load Moment System, anti-two block at boom head, pressure relief valves, dual overcenter valves.
a: distance between carrier cab and floor level
b: distance between carrier chassis and floor level
6x4 vehicle, to be supplied by the customer.
Minimum wheelbase may vary depending on the vehicle. Max a : 3120 mm
Max b : 1230 mm
