Aerial Platforms | HK 30 TP5

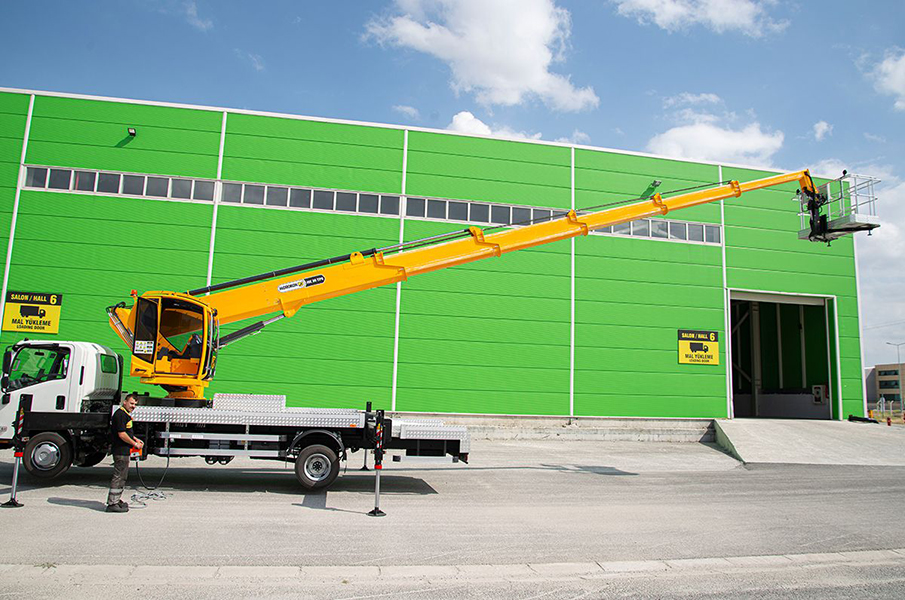

HK 30 TP5

Aerial Platforms

STANDARD
OPTIONAL




  HK 30 TP5
BASIC FEATURES

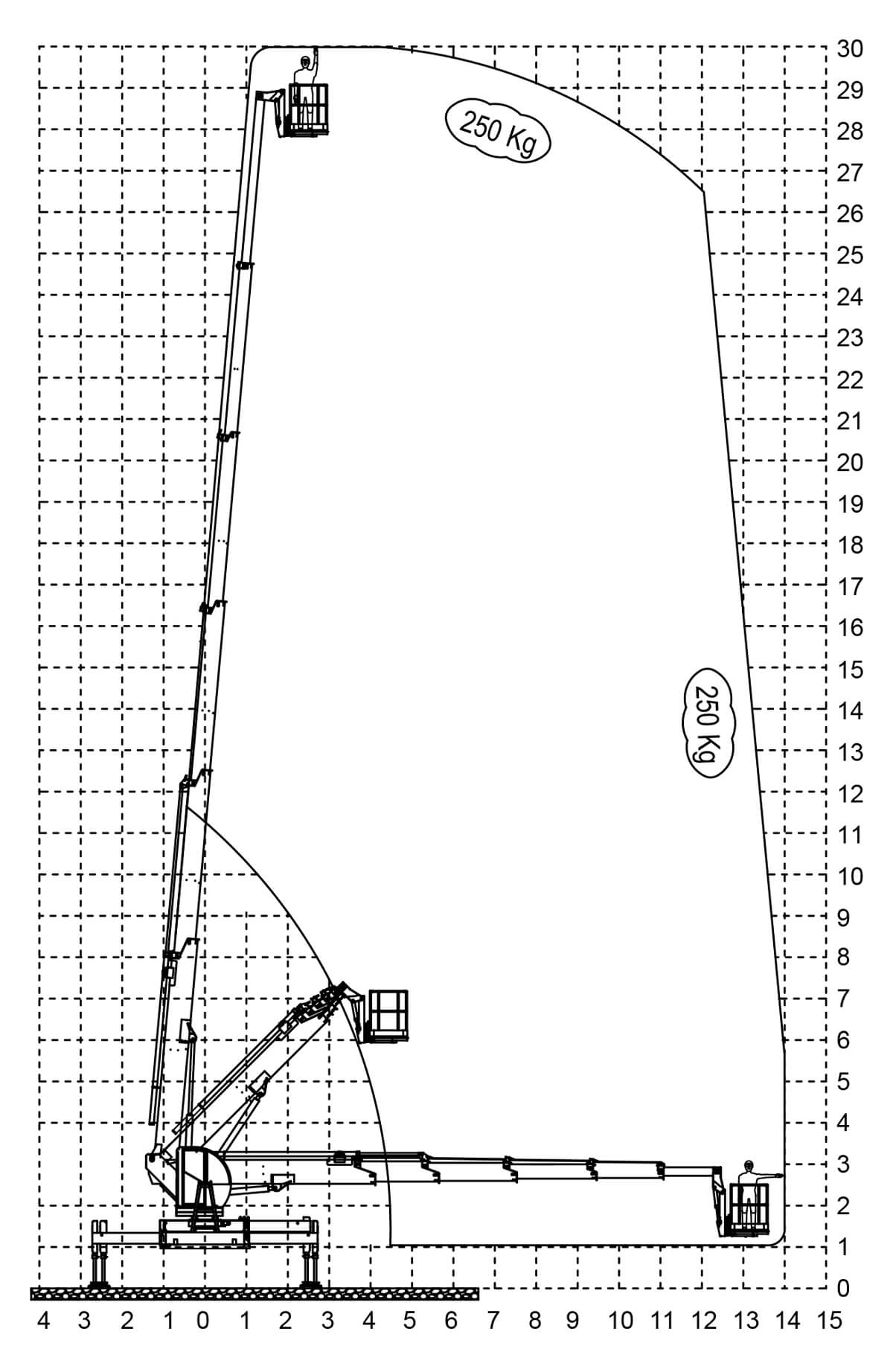

MAXIMUM WORKING HEIGHT 30 MT
MAXIMUM BASKET FLOOR HEIGHT 28 MT

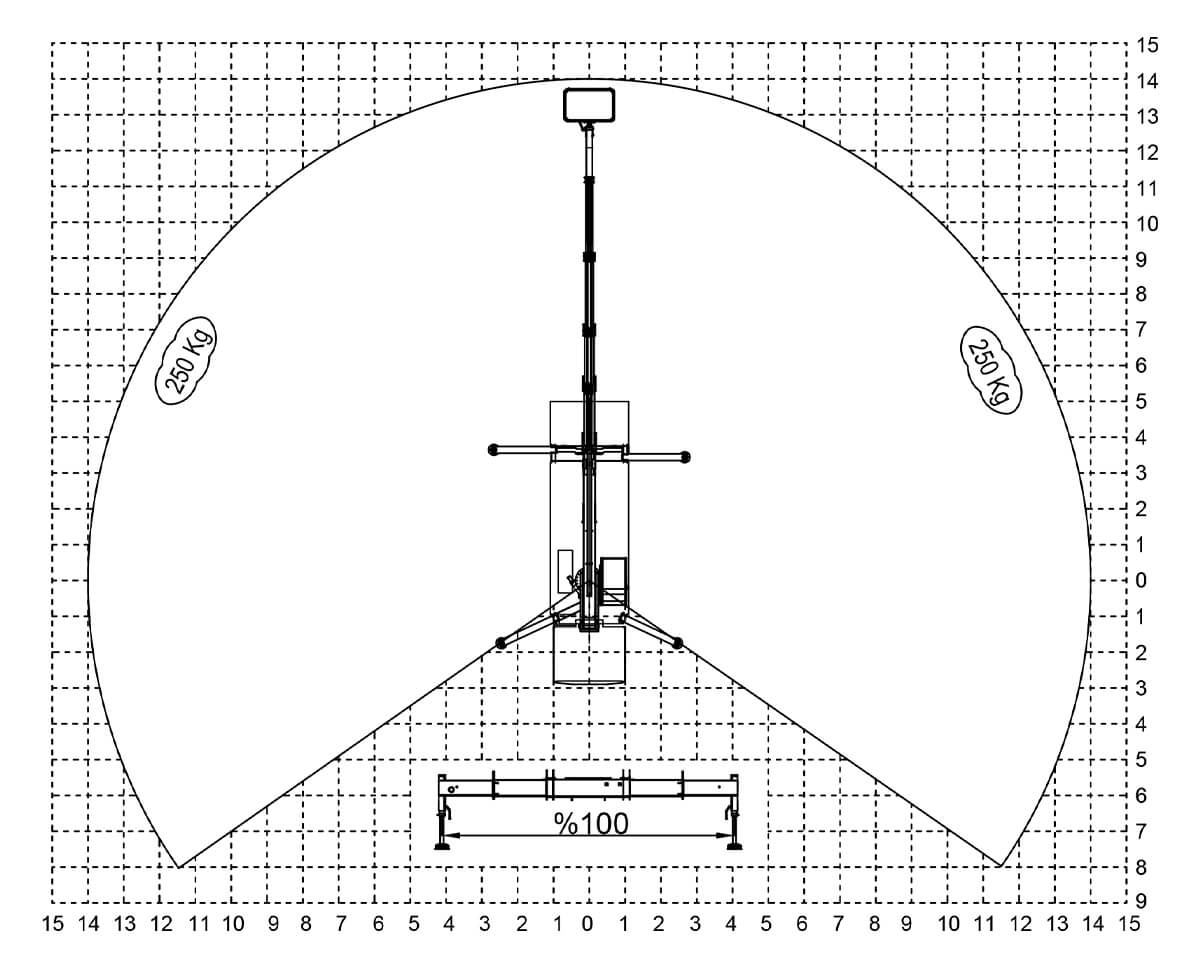

MAXIMUM HORIZONTAL OUTREACH 15 MT

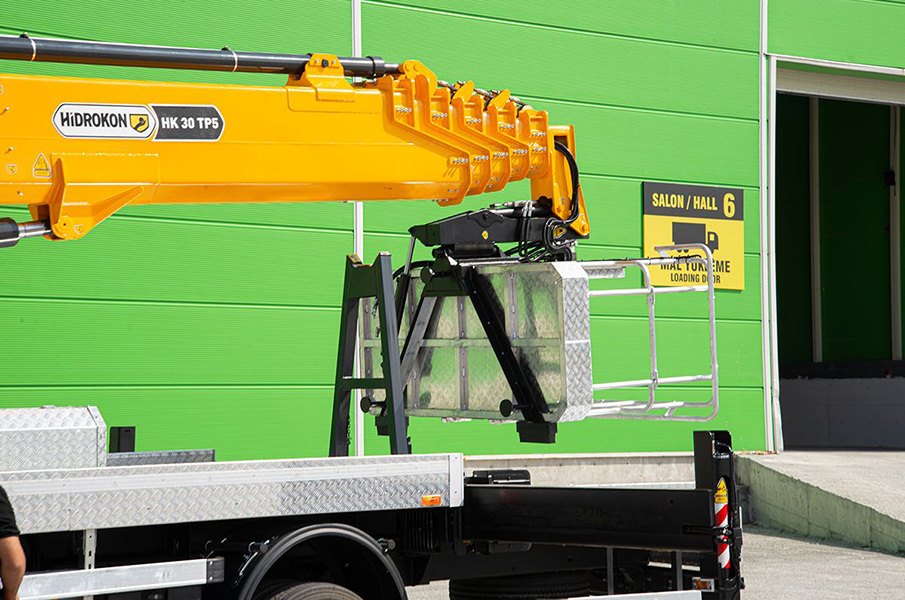

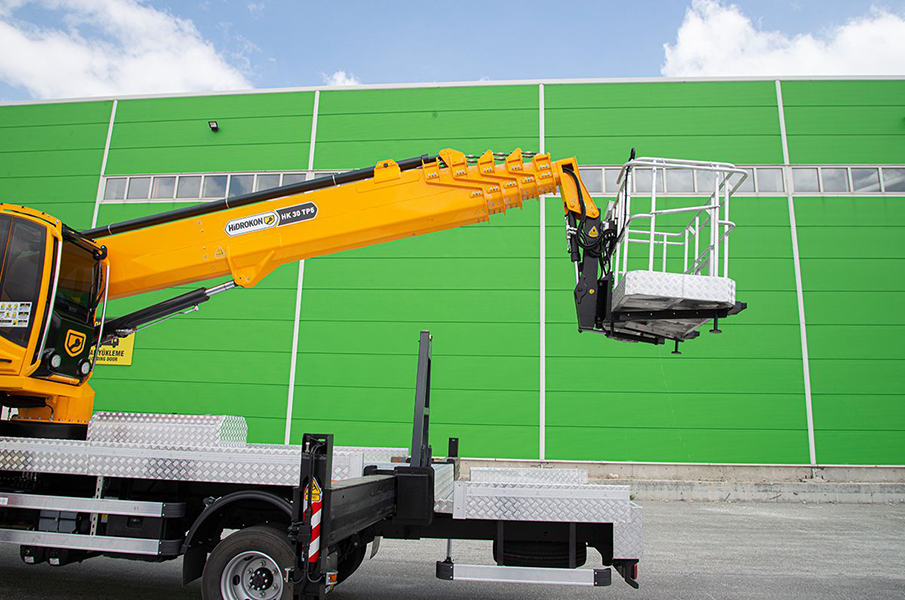

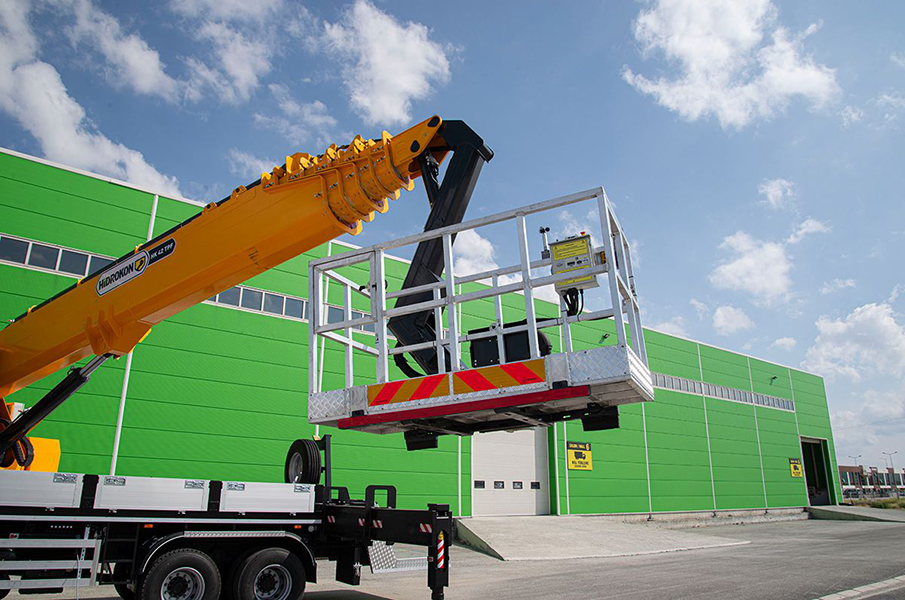

WORKMAN BASKET PROPERTIES
BASKET DIMENSIONS 850X1100X1400
MAXIMUM PERMISSIBLE LOAD 250 KG
SLEWING RANGE OF BASKET ± 65 °
ENGINE START/STOP IN THE BASKET STANDARD
220 V AC OUTLET STANDARD
OVERLOAD CONTROL ON BASKET -
LIGHTENING STANDARD

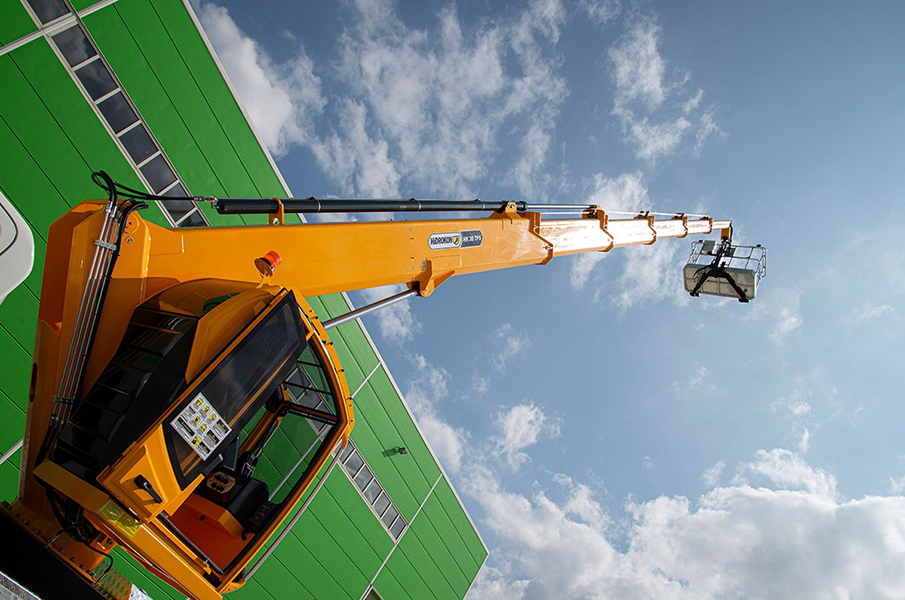

BOOM GROUP
NUMBER OF EXTENSION BOOMS 5
UPPER BOOM OF EXTENTION -
MAIN BOOM ANGLE 85 °
UPPER BOOM ANGLE -
FLY BOOM ANGLE -
LENGHT AND ANGLE CONTROL OF BOOM -
GEOMETRIC LIMIT CONTROL -

CABLE AND HOSE CARRYING SYSTEM INSIDE OFF BOOM

STANDARD
SLEWING SYSTEM
SLEWING RANGE ± 235 °
SLEWING ANGLE CONTROL -
SLEWING WITHIN MIRROR WIDTH STANDARD

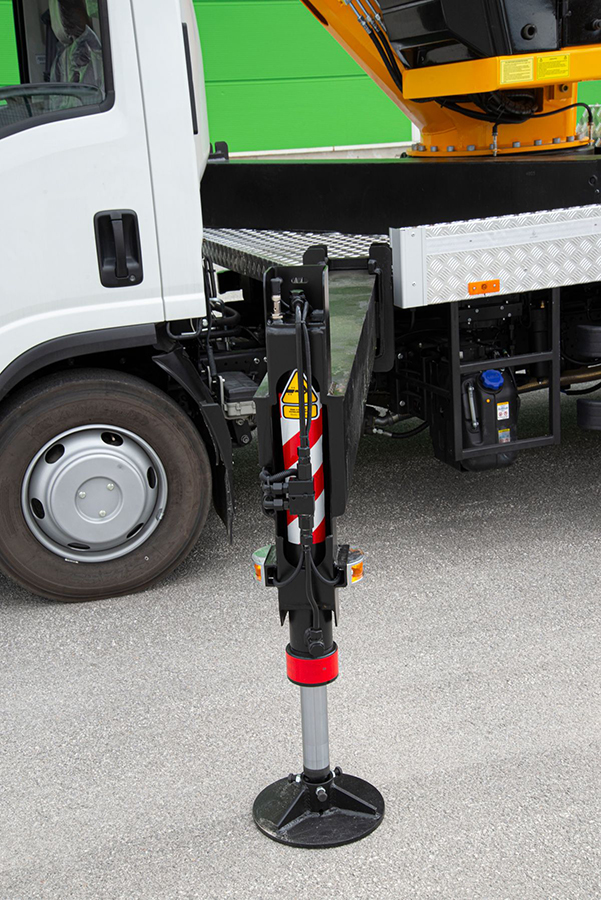

OUTTRIGGERS
TWO OUTRIGGERS ON EACH SIDE -
OUTRIGGER EXTENTION CONTROL -
VERTICAL JACKKING CONTROL STANDARD
MAXIMUM PERMISSIBLE INCLINATION 3 °

AUTOMATIC BALANCE LEVELLING CONTROL SYSTEM

-
CABLE AND HOSE CARRYING SYSTEM INSIDE OFF BOOMSTANDARD
CARRIER CVEHICLE
TOTAL WEIGHT WITH PLATFORM 10 T**
LENGHT IN TRANSPORTATION 8450 MM **
HEIGHT IN TRANSPORTATION 3145 MM **
WIDTH IN TRANSPORTATION 2260 MM **
ANGLE OF SLOPE 9 ° **
HYDRAULIC AND ELECTRICAL SYSTEM

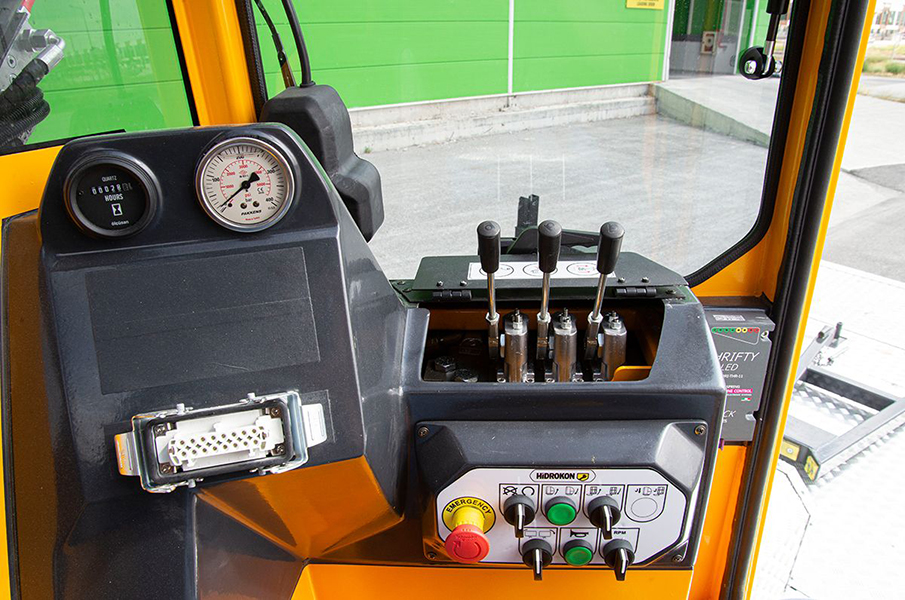

CABIN STANDARD
FULLY PROPORTIONAL HYDRUALIC DISTRUBUTOR STANDARD

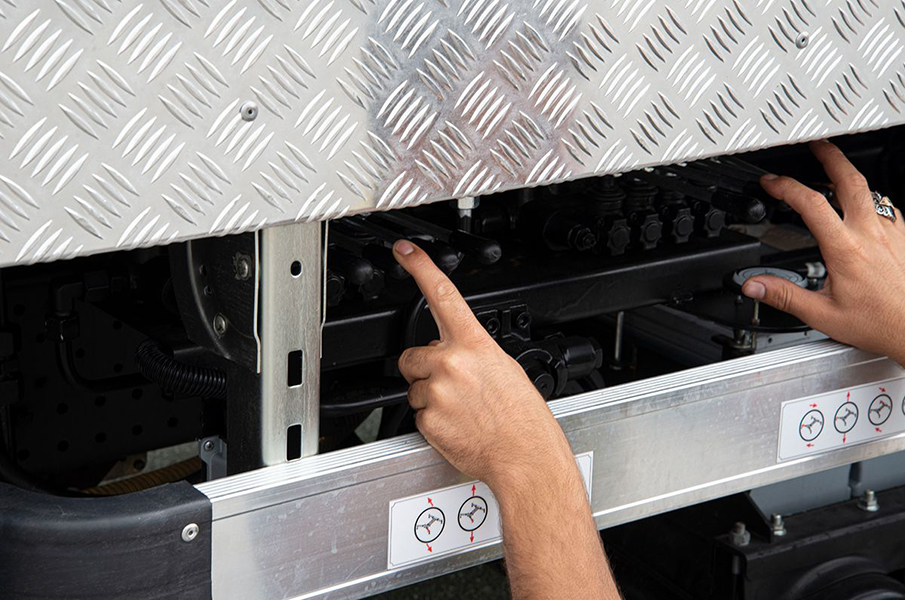

EMERGENCY HAND PUMP STANDARD
RAMPING ON MOVEMENT START AND STOP STANDARD
GEOMETRIC CONTROL SYSTEM -
GRAPHIC DISPLAY ON CABIN -
ENGINE START/STOP IN CABIN STANDARD

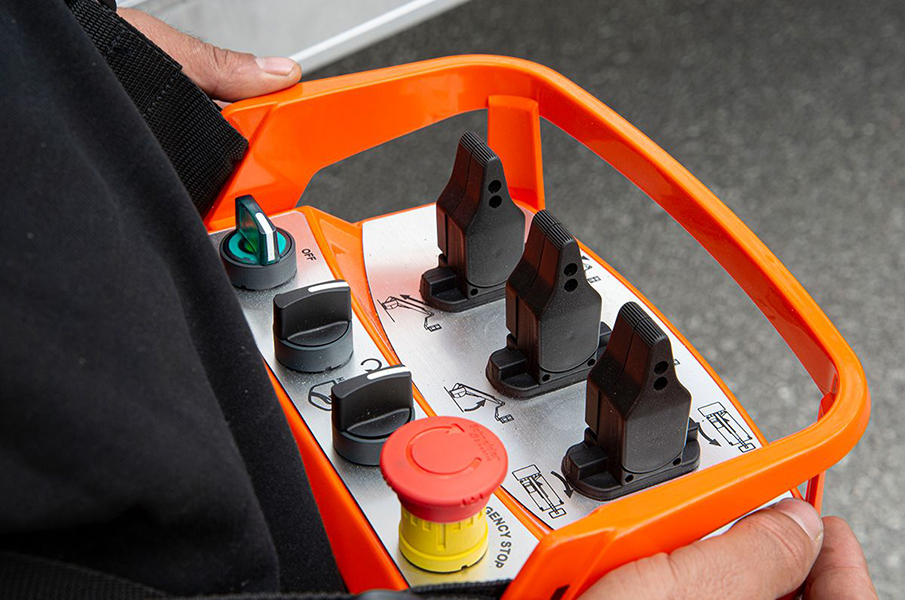

JOYSTİCK KUMANDA(KABLOLU) STANDARD
GRAPHIC DISPLAY IN THE BASKET
OPTIONAL FEATURES
CAB HEATING OPTIONAL
CABIN LIFTING OPTIONAL
TWO SECTION EXTENDABLE BASKET -
BODY BY ALUMINIUM COVER -
BASKET ELECTRICAL INSULATION OPTIONAL
COMMUNICATION OPTIONAL
WIND SENSOR OPTIONAL
STABILIZER PADS OPTIONAL



* IT CAN VARY DEPENDING ON THE VEHICLE TYPE.
