TELESCOPIC CRANE FILTER

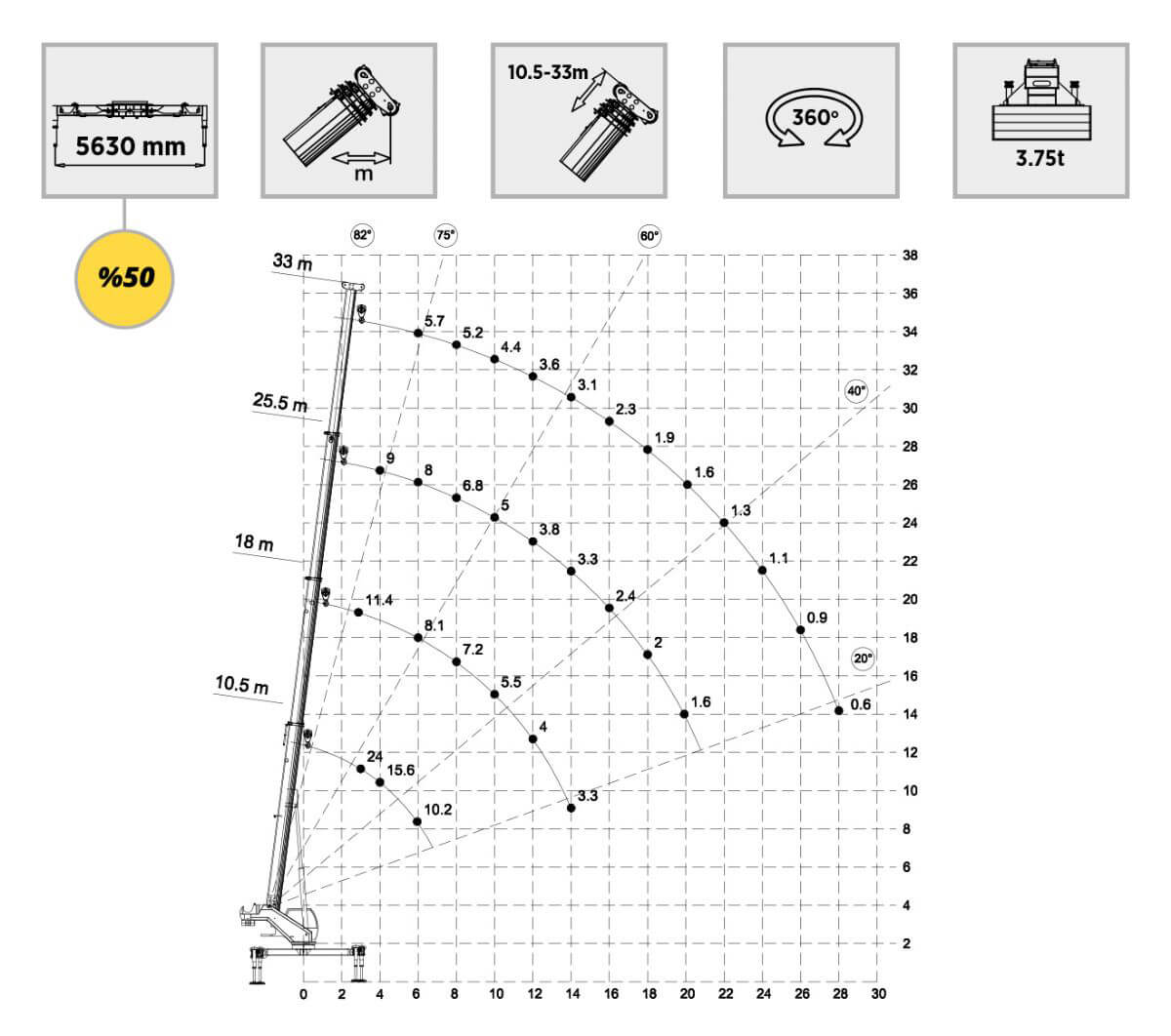

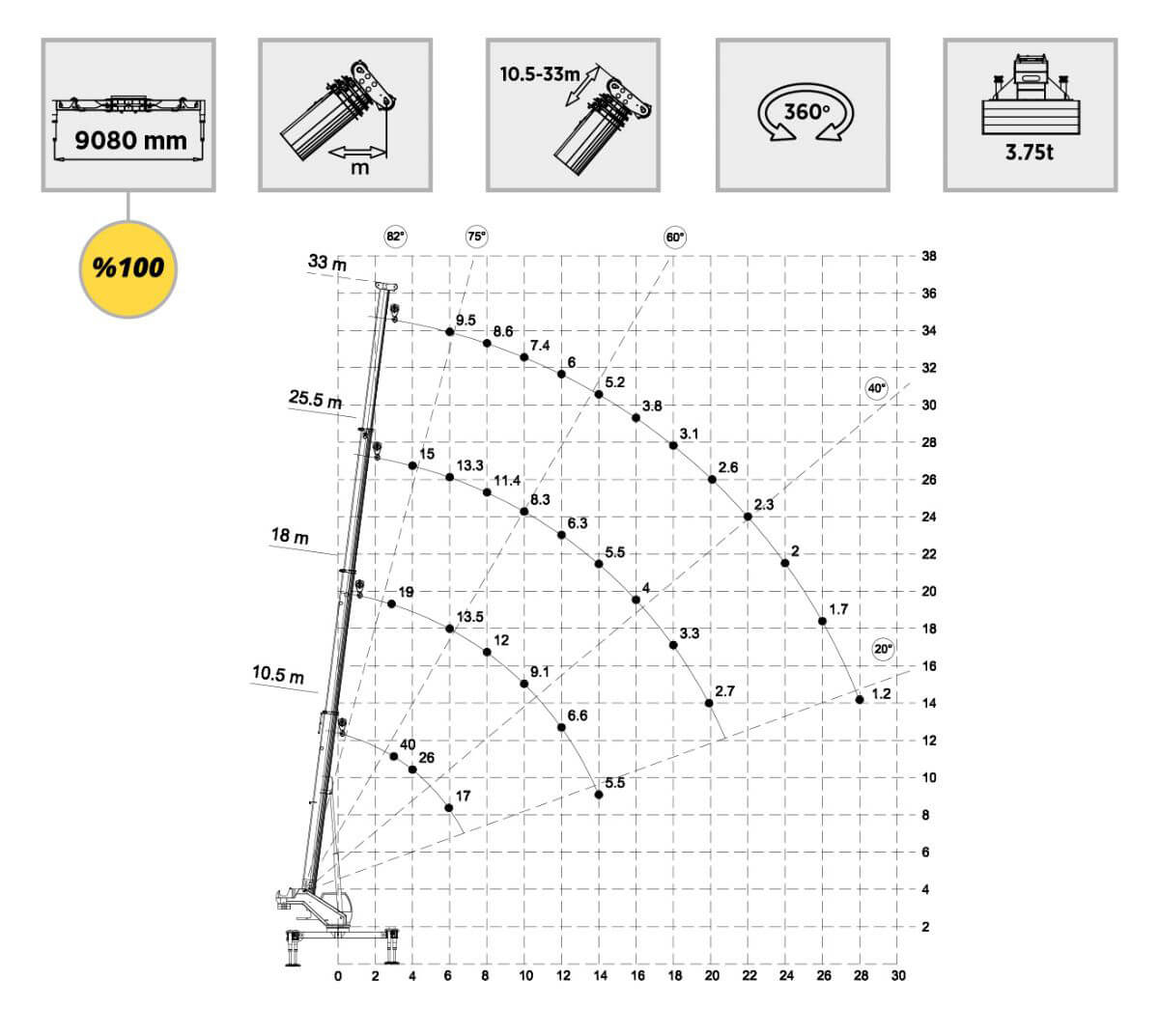

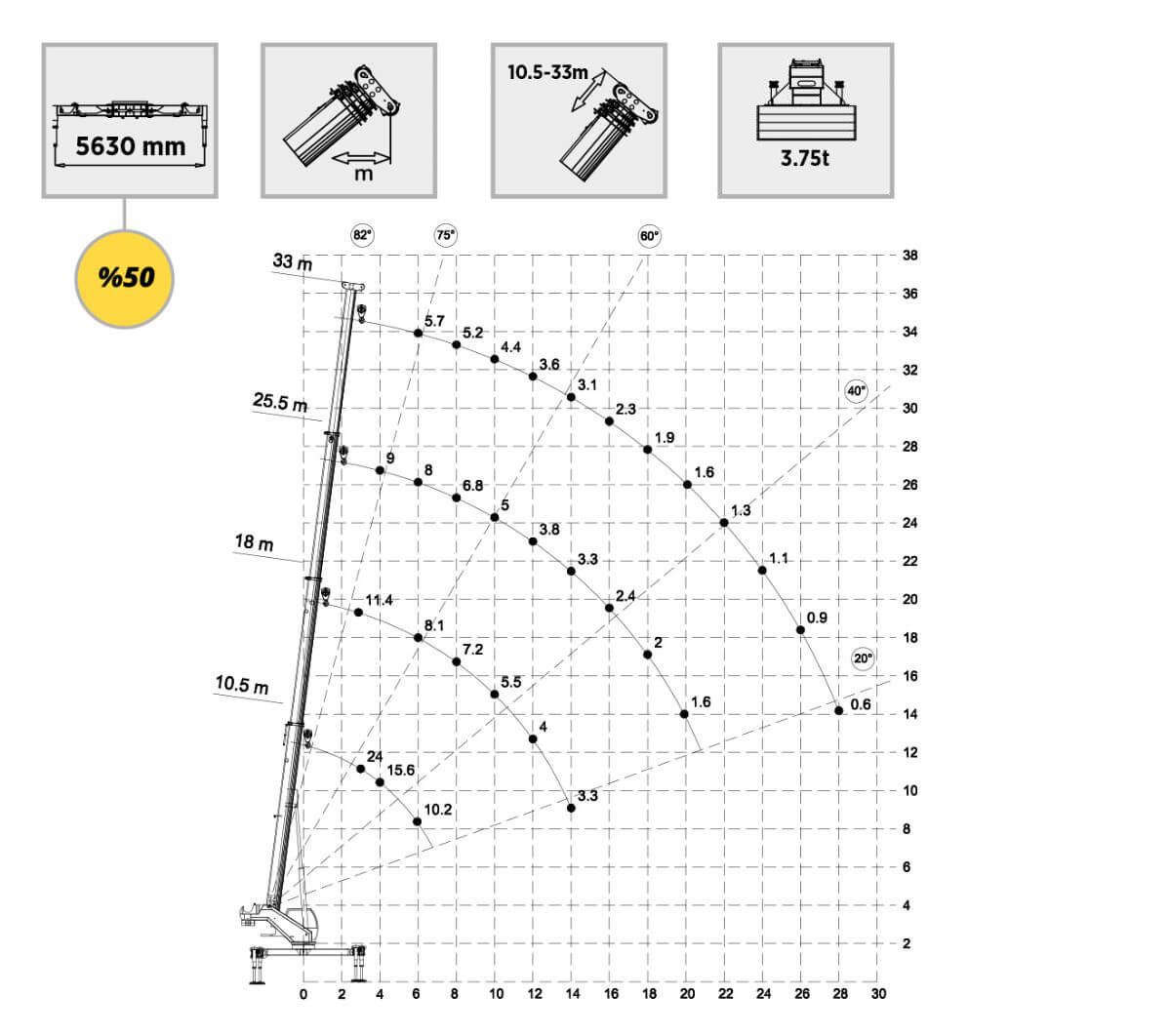

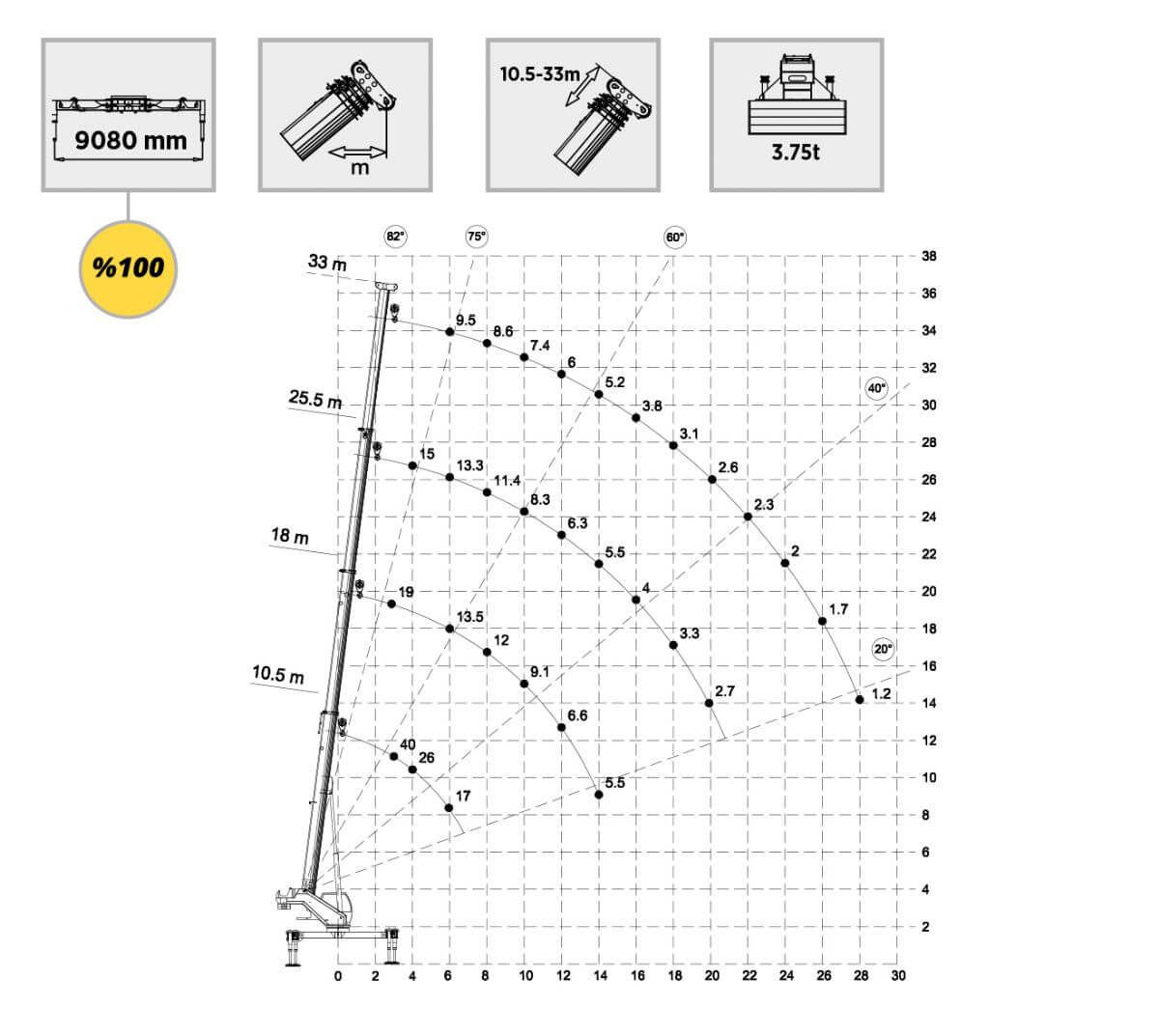

Lifting Capacity

DOWNLOADS

HK 120 33 T3
Data Sheet
DOWNLOAD

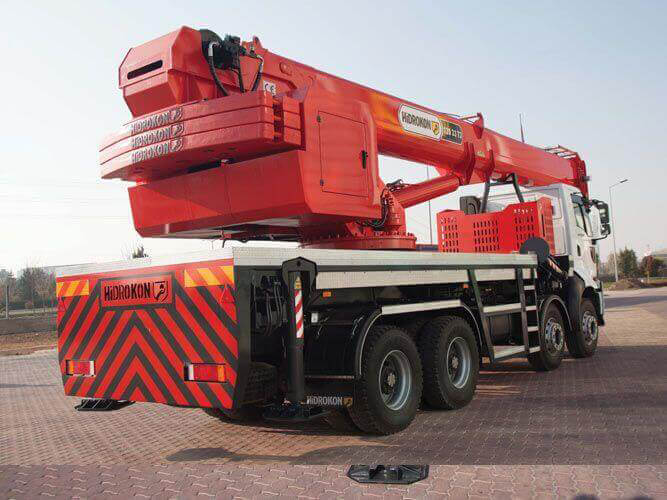

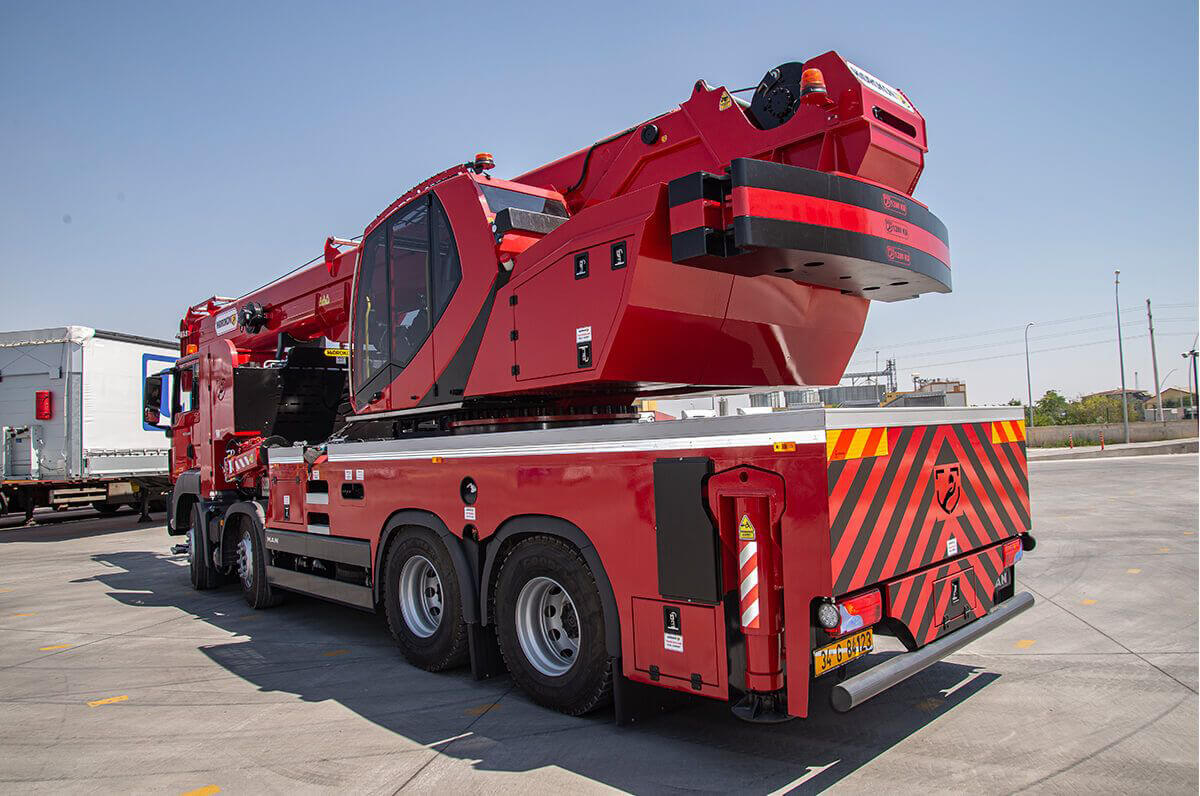

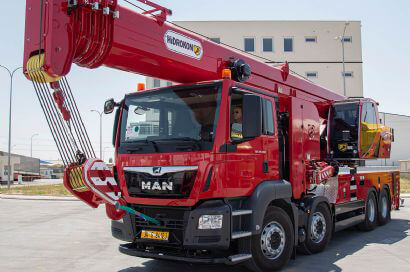

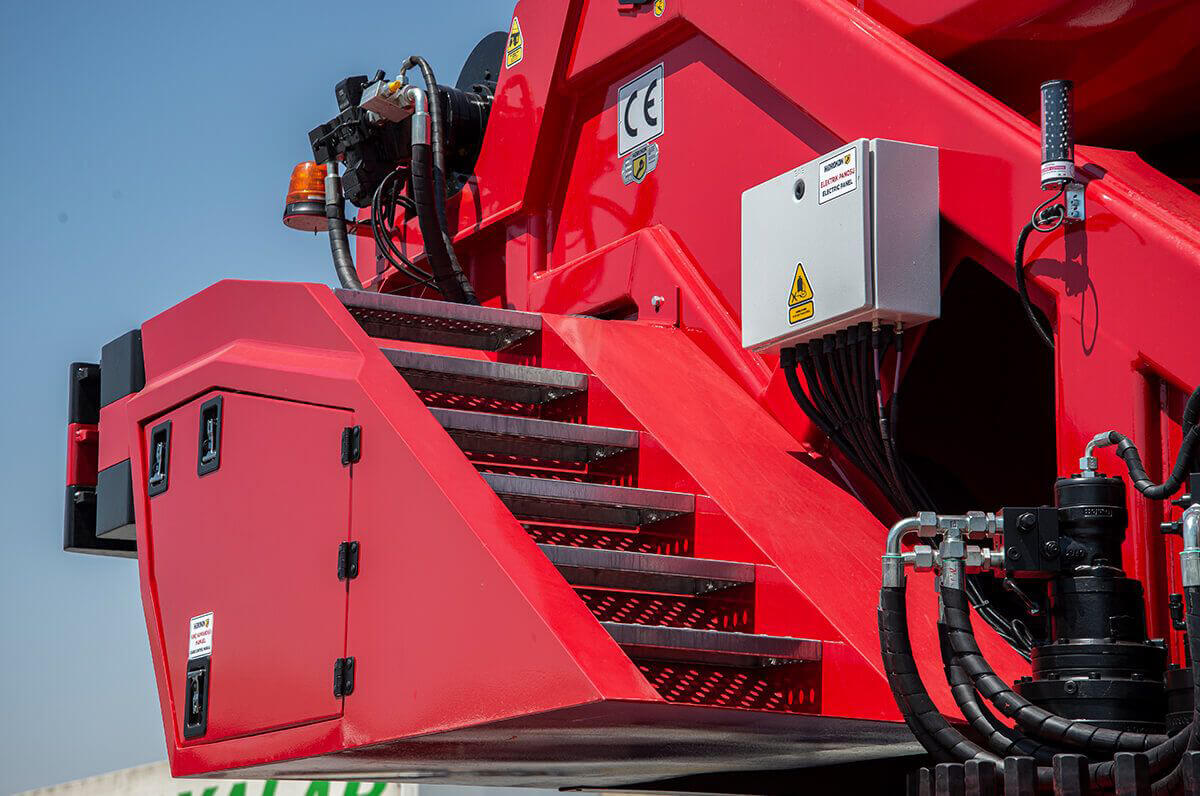

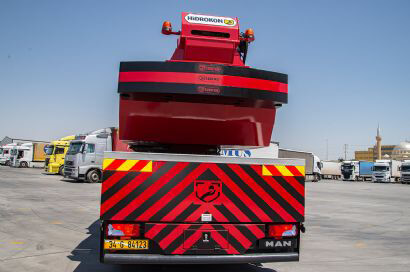

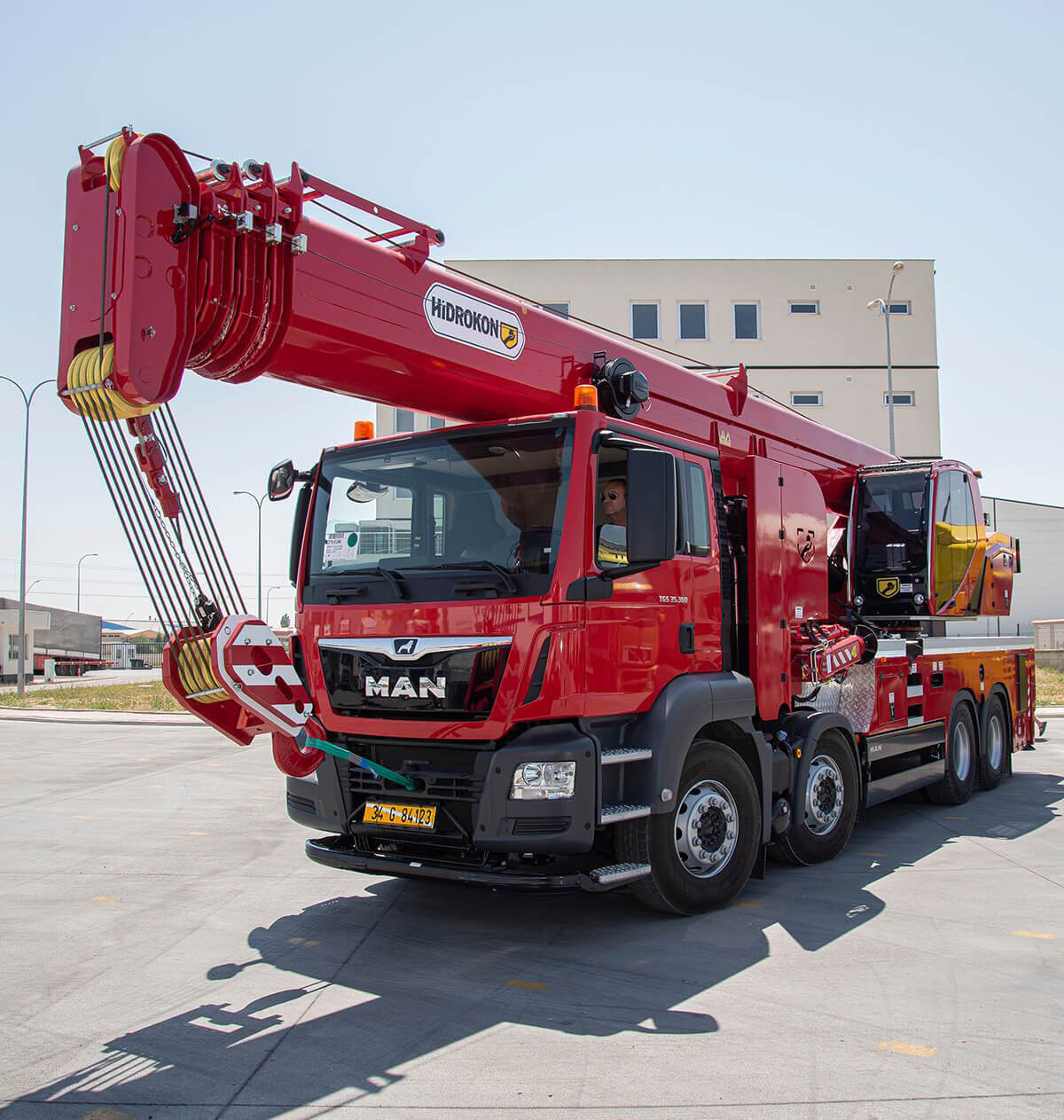

Telescopic Cranes | HK 120 33 T3

  • FEATURES

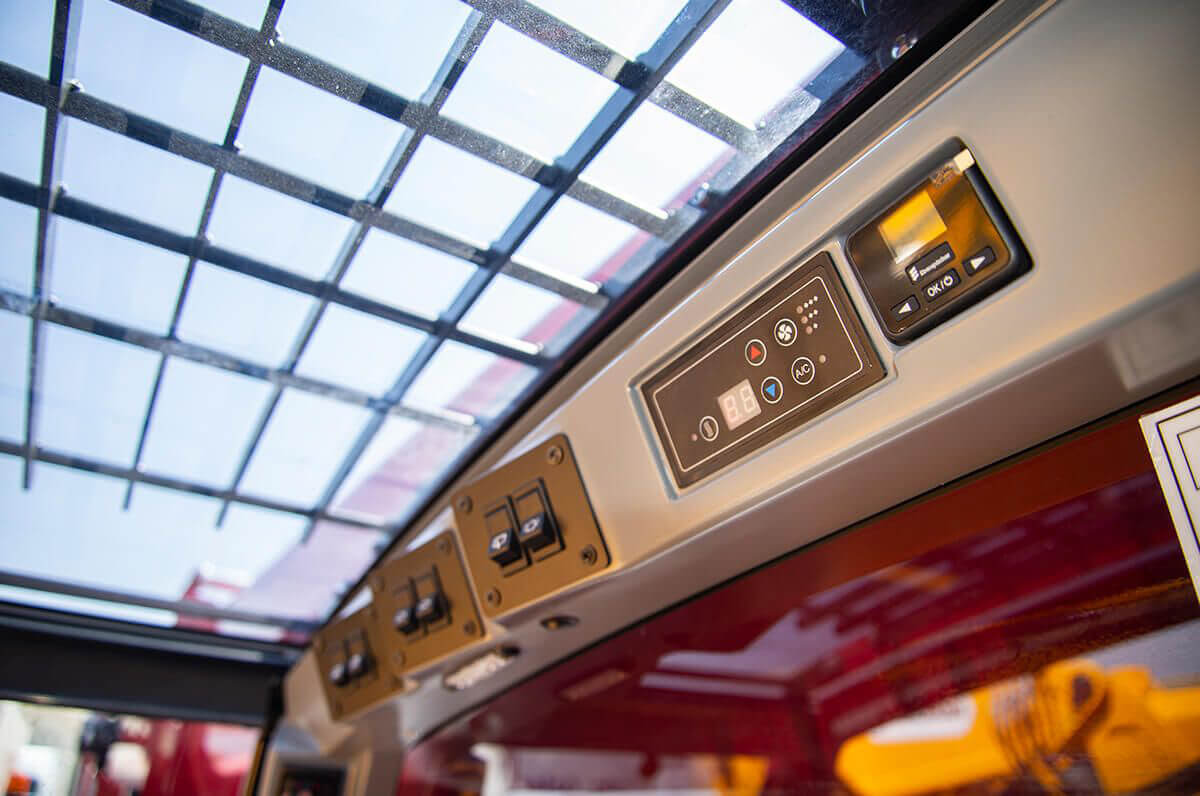

    Operator Cabin

    Operator Cabin
    Heating

    Operator Cabin
    (Tiltable)

    Operator Cabin
    A/C

    Joystick Control

    Proportional
    Control
    Valve

    Crane Radio Remote Control

    Outrigger
    Radio Remote
    Control

    Automatic
    Outrigger
    Leveling

    %  50

    Outrigger
    Control
    System

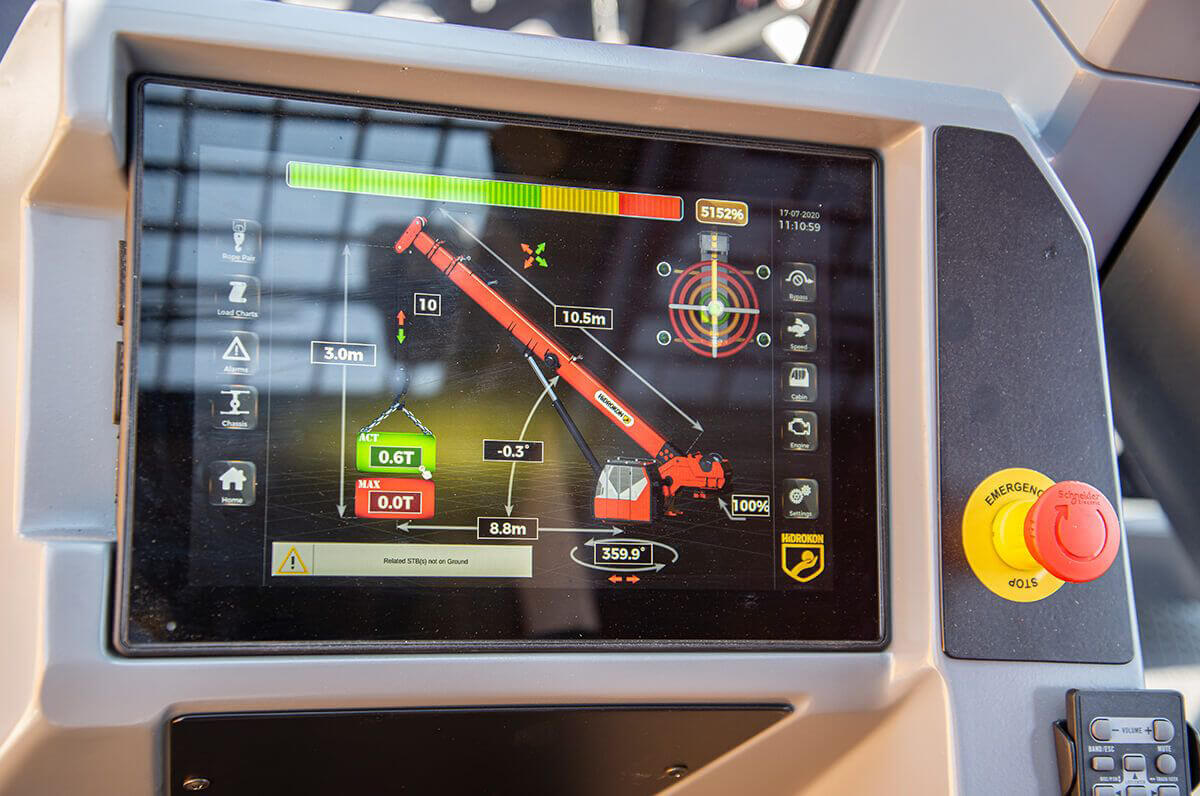

    Load
    Weighing
    System

    Variable
    Displacement
    Pump

    Automatic Lubrication

    Counter Weight

Drive
Infıtely Variable : 0-136 m/min (4th layer) Single Line
Rope Diameter/Lenth: 14 mm / 163 m
Max. Single Line Pull: 40 kN / 4078 kg (4th layer)
approx. 60 seconds to reach 82° boom angle
approx. 70 seconds for boom extension from 10.5 m to 33 m
1.5 min-1

Chassis
Frame
HIDROKON designed and manufactured, box type torsion resistant, made of high tensile structural steel.

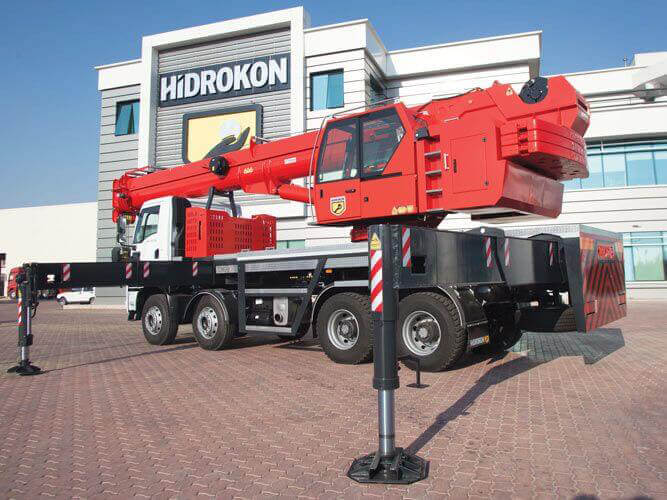

Outriggers
H type four outriggers which are hydraulically operated by control levers. Control levers are located at the each side of the truck chassis.

Superstructure
Slewing System
Continuous slewing on ball bearing slewing ring. Process is operated by hydraulic motor driven planetary gear reducer. Slewing is possible continuously 360°. Slewing speed 1.5 min-1

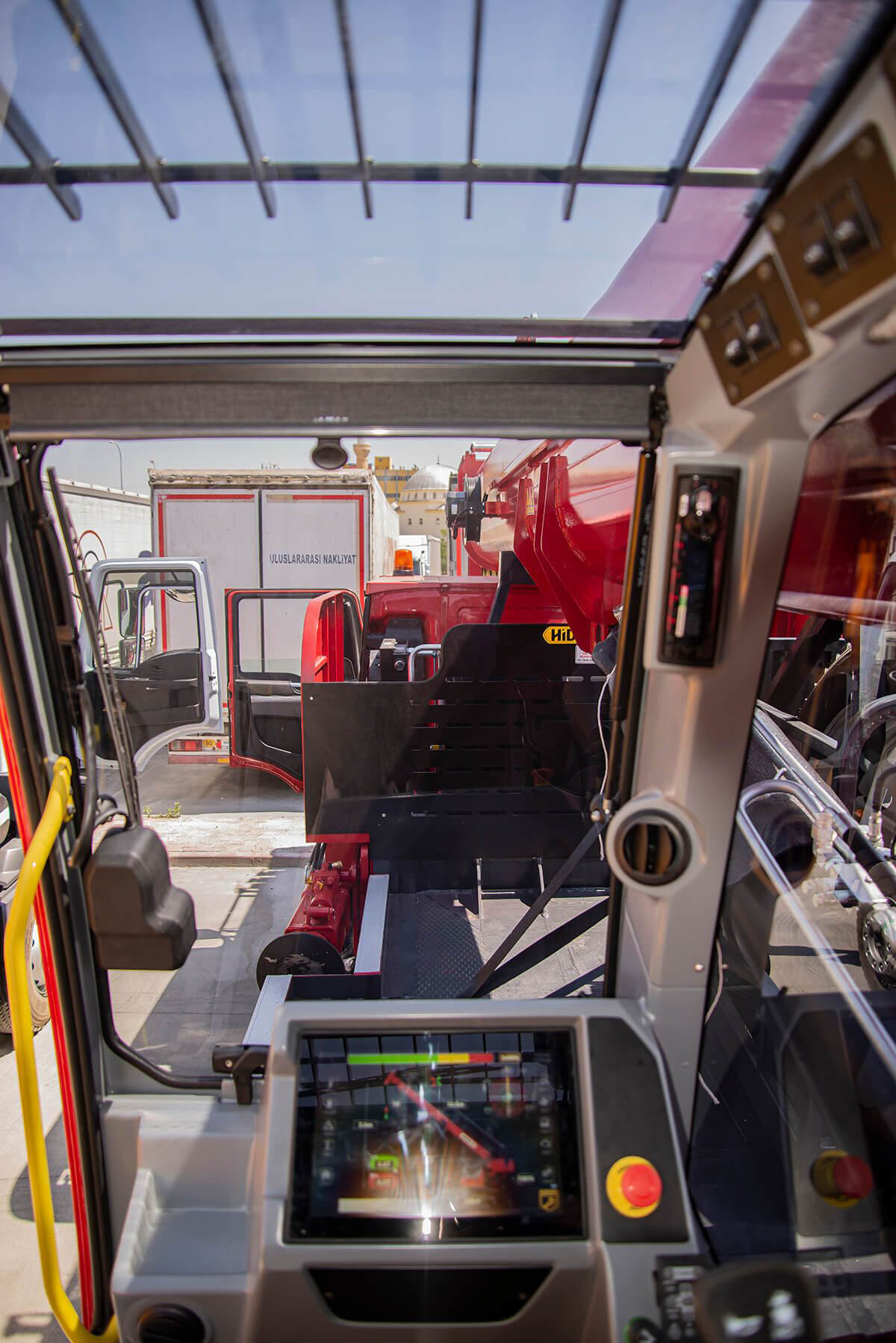

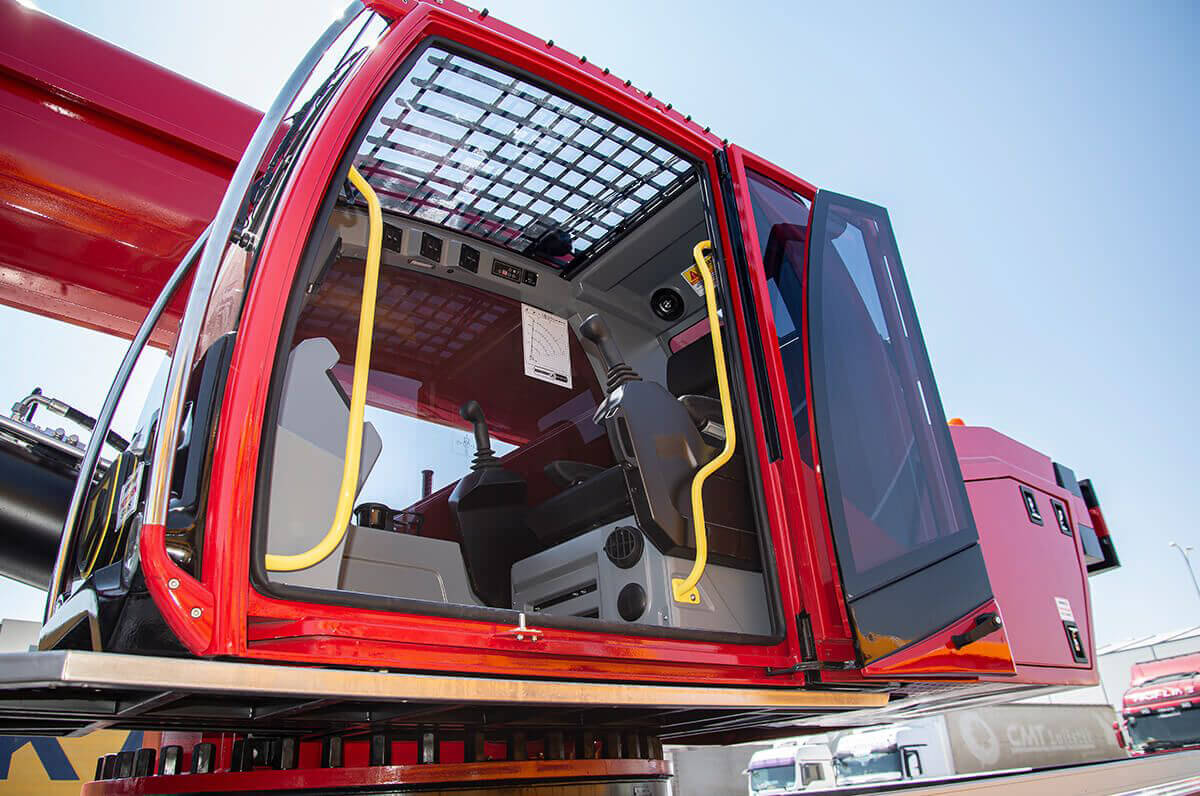

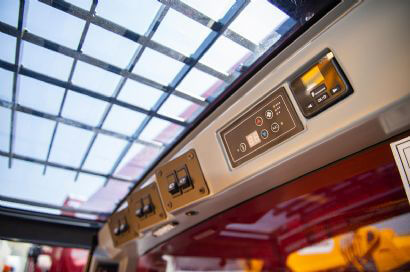

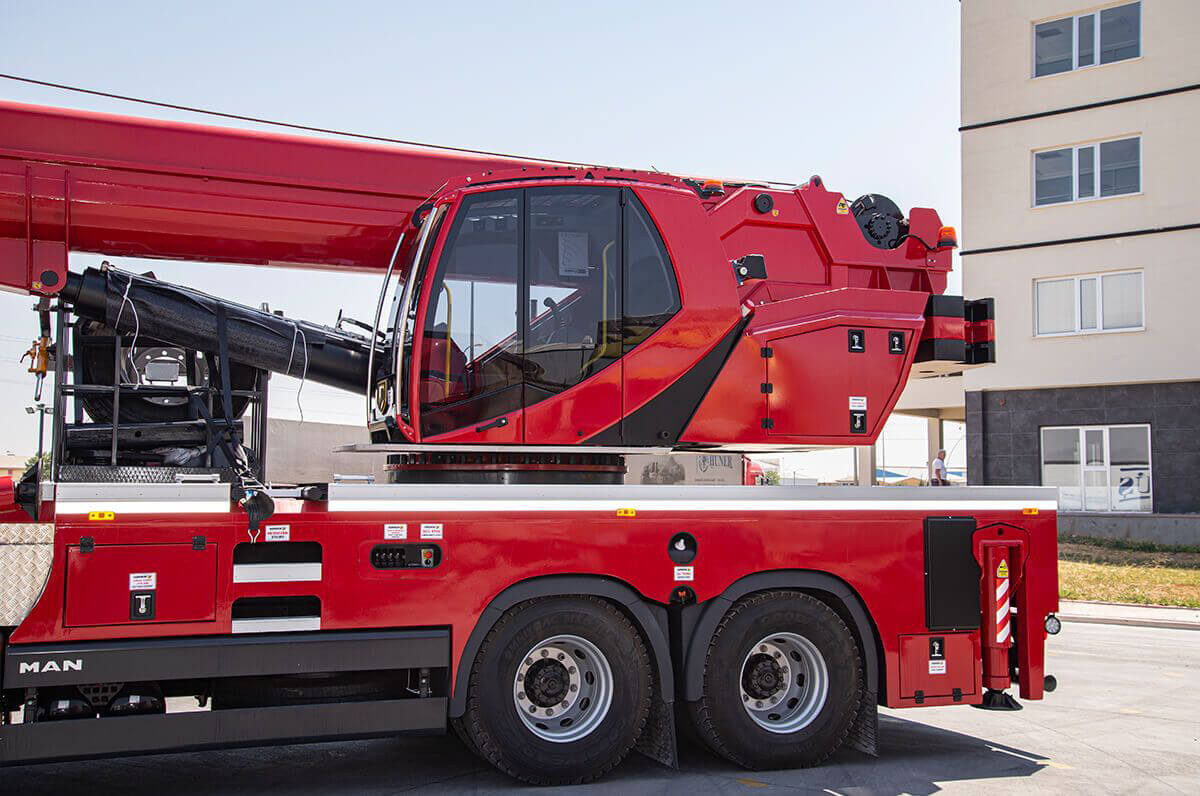

Operator Cabin

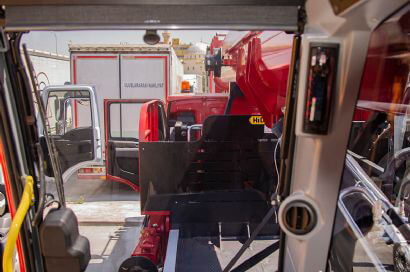

Ergonomic and comfortable design for optimum visibility. Cabin with heater and tilt function up to 25°.

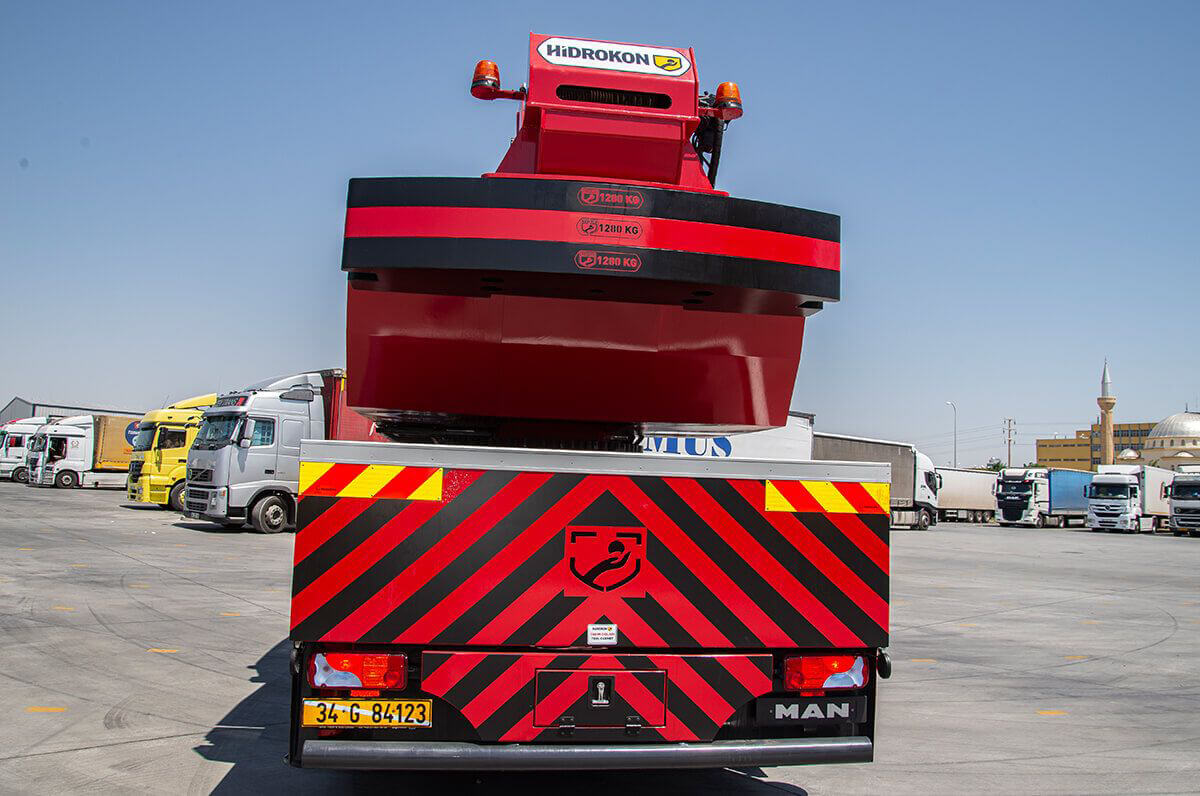

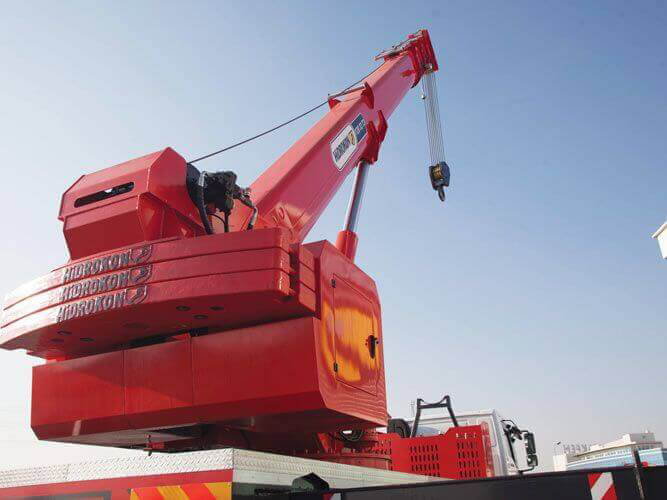

Counterweight
Fixed counterweight of 3.75t.

Booms
Telescopic Booms
System consist of 1 basic boom and 3 telescopic boom sections. Hydraulically extendable and sy-nchronized extension is on telescopic booms. Sections are made of high strength structural steel.

• Main boom length is 10.5 m – 33 m.
• Boom angle range is 0° - 82°.
• Main boom reaches 0° to 82° in 60 s.

Safety Devices
Load Weighing System, Load Moment System, anti-two block at boom head, pressure relief valves, dual overcenter valves.


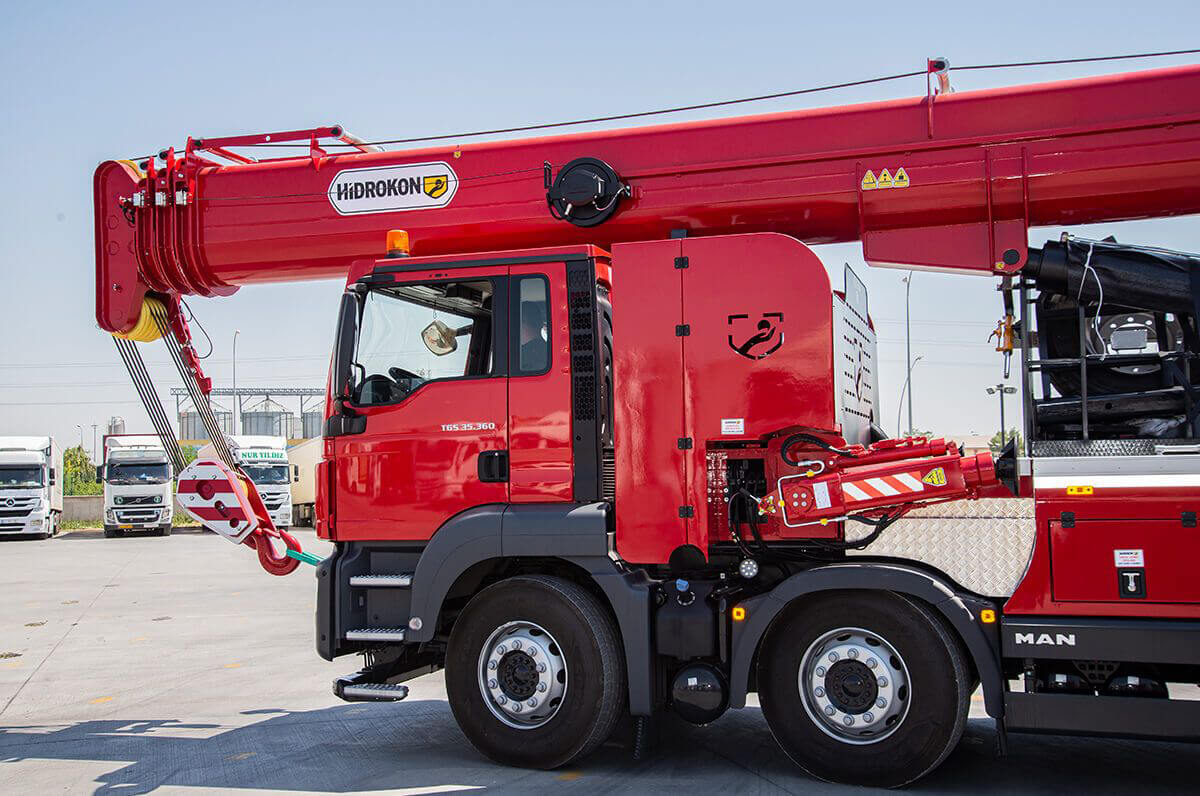

Crane Carrier

a: distance between carrier cab and floor level
b: distance between carrier chassis and floor level

8x4 vehicle, to be supplied by the customer.
Minimum wheelbase may vary depending on the vehicle.
Max a : 2990 mm
Max b : 1150 mm
