PRODUCTS | Loader Cranes | HK 110 E8+J12E6

LOADER CRANES FILTER

Lifting Capacity

DOWNLOADS

HK 110 E8
Data Sheet
DOWNLOAD

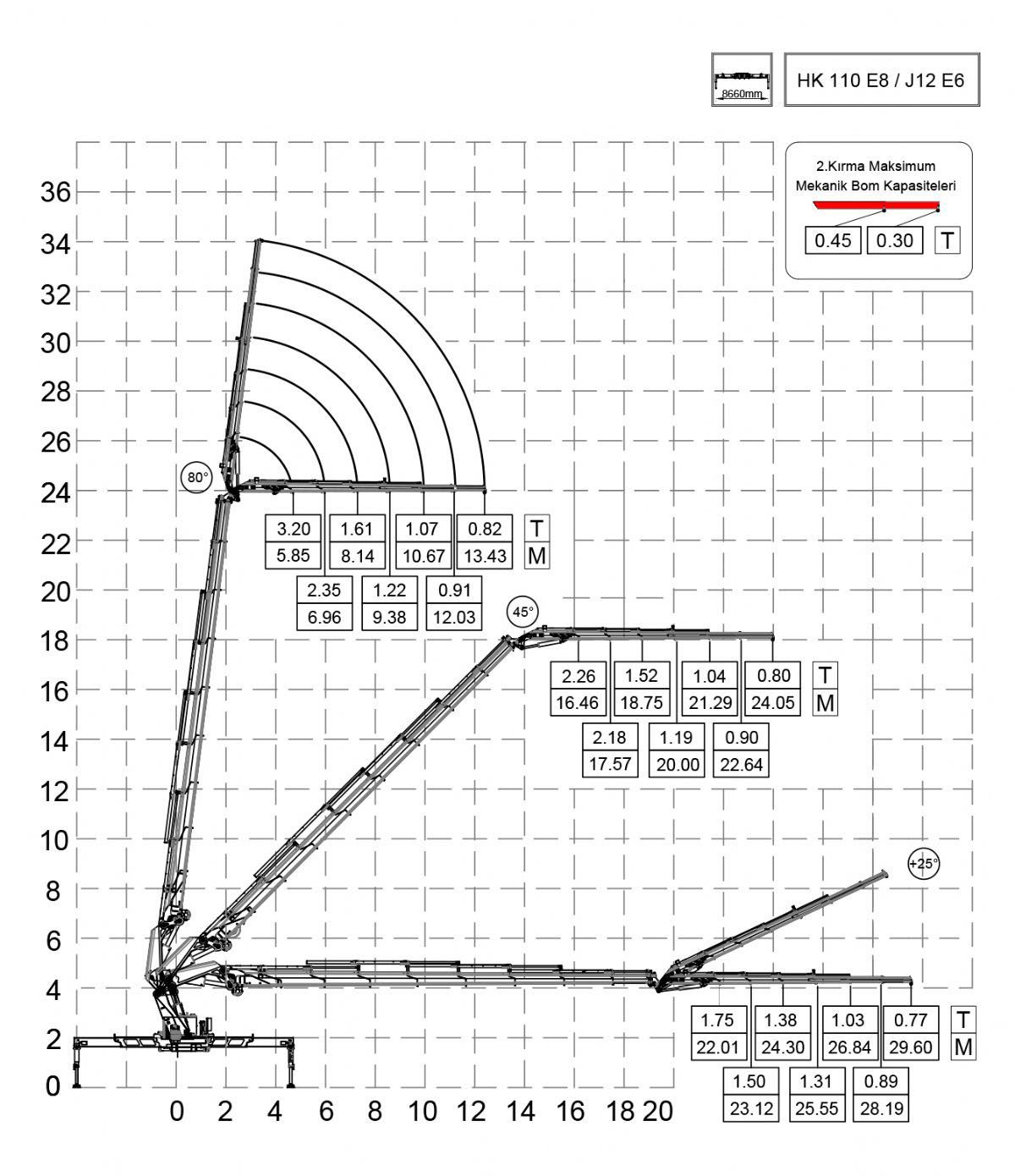

Loader Cranes | HK 110 E8+J12E6

  • FEATURES

    Proportional
    Control
    Valve

    Crane
    Radio Remote
    Control

    Outrigger
    Radio Remote
    Control

    Automatic
    Outrigger
    Leveling

    %  50

    Outrigger
    Control
    System

    Load
    Weighing
    System

    Variable
    Displacement
    Pump

    Automatic Lubrication

    Load Case

    Load
    Case
    Extension

    1.9 t

    Hoisting Winch

    Oil Tank
    400 l lt

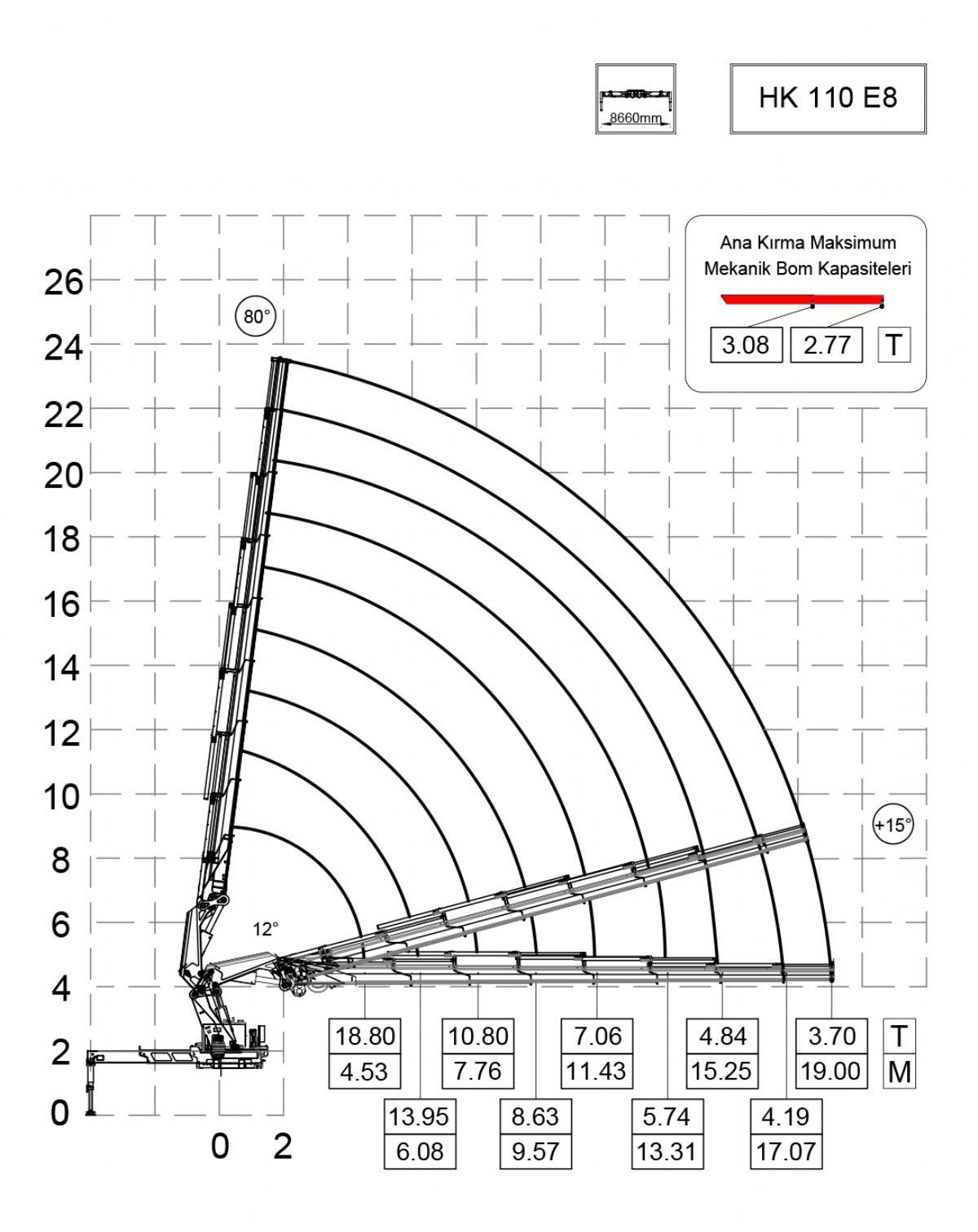

  HK 110 E8
Technical Specification
MAXIMUM HYDRAULIC VERTICAL OUTREACH 23.98 m 78' 8.09''
MAXIMUM MANUAL VERTICAL OUTREACH 28.21 m 92' 6.63''
MAX.HYDRAULIC VERTICAL OUTREACH WITH FLY JIB 34.80 m 114' 2.08''
MAX.MANUAL VERTICAL OUTREACH WITH FLY JIB 37.65 m 123' 6.28"
WORKING PRESSURE 350 bar 5076 psi
ROTATION ANGLE Endless Endless
NUMBER OF HYDRAULIC EXTENSIONS 8 8
NUMBER OF HYDRAULIC EXTENSIONS WITH FLY JIB 6 6
NUMBER OF MANUAL EXTENSIONS WITH FLY JIB 2 2
NUMBER OF MANUAL EXTENSIONS 2 2
OIL TANK CAPACITY 400 l 400 l
DEAD WEIGHT(Std.) 10900 kg 24,030 lbs
DEAT WEIGHT(Std.) 12560 kg 27,690 lbs
